Common applications · FTP-300
Video Surveillance

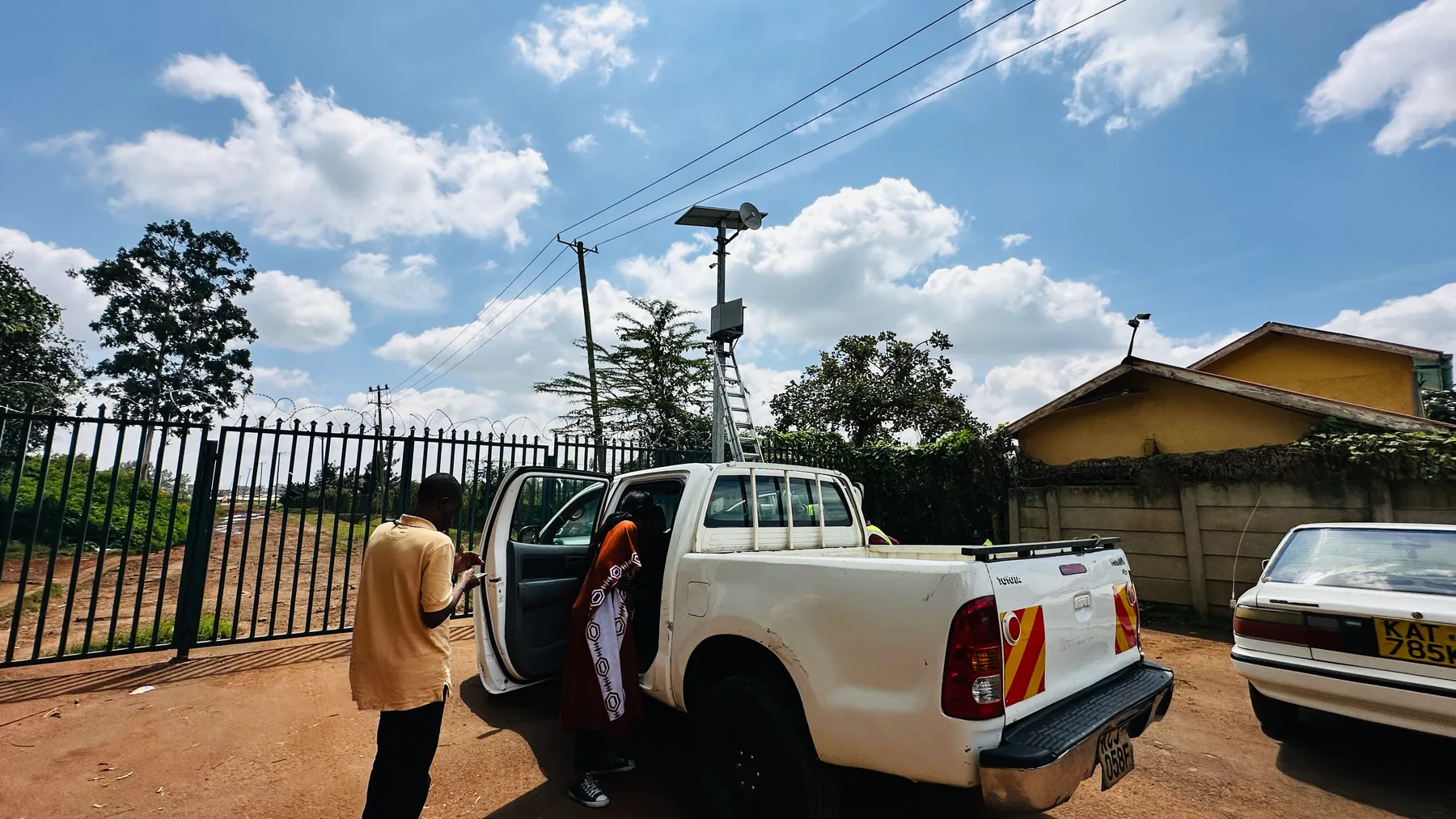

The FTP-300 powers the video camera used for surveillance and the microwave radio that provides access to the internet. The solution allows Insight Secure to deploy video surveillance with microwave middle-mile connectivity anywhere the sun is shining. Very little planning is required.
- Deployed in
- location_onKenya
- location_onAfrica
Solutions
How the FTP-300 powers Video Surveillance
In this solution the video camera is connected to the FTP-300 via one of the two Ethernet ports for data and 48 V power. The Cambium Force 200-25 is connected on the second Ethernet port for data and 24 V power. Connectivity between the video camera and CPE is via the FTP-300. The solution doesn’t require separate PoE injectors and there is a minimum of cabling required.
We are delighted to partner with Fuzion and Cambium Networks to deploy reliable video surveillance services across Kenya. We have tested different solutions, and this one finally works and scales very well.
From smart city Wi-Fi to remote surveillance, our FTP-300 unit integrates seamlessly with Meraki deployments — even in harsh, off-grid locations.
Product features
FTP-300
-
hub
Versatile
Having a separate DC output and two back-to-back connected data connectors, which individually can be PoE enabled, FTP-300 can be used in multiple applications such as powering wireless access points, surveillance cameras, wireless bridges and repeaters, cable modems, and remote lighting systems.
-
battery_charging_full
Powerful long-lasting battery
FTP-300 can provide up to 60 hours of battery backup to a Wi-Fi access point or be deployed with less battery capacity to minimize cost of batteries. The battery cells may last for up to 10 years.
-
construction
Deploy and forget
FTP-300 is designed to work in harsh and remote locations. To conserve battery longevity, FTP-300 turns off when power levels become too low to sustain further usage. When the charge level is back above the threshold, FTP-300 automatically turns on again. No human intervention required.
Specifications
All specifications arrow_forward- Output power
Total maximum output power (PoE + AUX): 30 Watt
2 x 0/24/48 VDC selectable Passive PoE
48 VDC - Max Power 30W as PSE
24 VDC - Max Power 30W as PSE (15W/port)
1 x AUX + 24 VDC - Max Power 30 W
- Ethernet ports
2 x 100 Mbps Ethernet, connected back-to-back
- Box IP-Rating
IP65
- Operating temperature
Charging: +0°C to +45°C / +32°F to +113°F
Discharging: -20°C to +60°C / -4°F to +140°F
