Part# FTP-840-000088
AC Power Support
IP67 outdoor rated AC/DC adapter with MC4 connectors for the FTP-300
Contact sales arrow_forward
Use case: Access sites
FTP-300
Ideal for Wi-Fi hotspots, surveillance cameras, microwave CPE's, cellular gateways and more.
- Capacity
- 300 Wh
- Ethernet ports
- 2 x 100 Mbps Ethernet, connected back-to-back
- Output power
- 2 x 0/24/48 VDC selectable Passive PoE; 1 x AUX +24 VDC
- Use case
- Access sites
- Warranty
- 3 years
Interested in a demo?
To receive more details, please contact our friendly sales team. We will help you choose the best option for your solution.
Starter Kit$ 799 / kit
arrow_forward
Related documents
- description Fuzion FTP-300 Datasheet PDF · 5.8 MB download
- description Fuzion FTP-300 Quick Start Guide PDF · 2.6 MB download
- description Solar Structure Manual PDF · 1.8 MB download
- folder_zip Fuzion FTP 300 image pack ZIP · 10.2 MB download
- description AC/DC Quick Install Guide PDF · 708 KB download
Product features
Product details
The Fuzion FTP-300 is a durable solar charged power solution with PoE in a small form factor ideal for Wi-Fi hotspots, microwave radios, cellular gateways, surveillance cameras and more. The FTP-300 is designed for “deploy-and-forget” installations in remote areas and for operation under harsh environmental conditions.
Fuzion is committed to connecting people and things in an environmentally sustainable manner. FTP-300 is designed for energy efficiency and compatibility with a wide range of solar panels, thus mitigating the emissions and air pollution caused by diesel and coal powered connectivity infrastructure. Each FTP-300 saves 175 kg of CO2 emissions per year, thereby contributing to the achievement of Sustainable Development Goal 7.
- Battery capacity
- 300 Wh
- Battery backup to a Wi-Fi access point
- up to60 h
- Battery cell lifetime
- up to10 yrs
- CO2 emissions saved per unit, per year
- 175 kg
- Box IP-rating
- IP65
- Hardware warranty
- 3 yrs
monitoring
Remote power monitoring
FTP-300 has built-in IoT capabilities including remote monitoring capabilities. The dashboard aggregates data points from connected power units, and presents key performance indicators — like temperature and connection status — in a clear and intuitive way.
battery_charging_full
Powerful long-lasting battery
FTP-300 can provide up to 60 hours of battery backup to a Wi-Fi access point or be deployed with less battery capacity to minimize cost of batteries. The battery cells may last for up to 10 years.
construction
Deploy and forget
FTP-300 is designed to work in harsh and remote locations. To conserve battery longevity, FTP-300 turns off when power levels become too low to sustain further usage. When the charge level is back above the threshold, FTP-300 automatically turns on again. No human intervention required.
solar_power
Multiple options for power input
The high-grade built-in MPPT means that FTP-300 is perfectly coupled with solar panels. It can also work with AC power with the Fuzion IP-67 outdoor rated AC/DC adapter.
bolt
High power to size ratio
Leveraging Li-ion batteries, FTP-300 delivers an unprecedented amount of power compared to its small size.
hub
Versatile
Having a separate DC output and two back-to-back connected data connectors, which individually can be PoE enabled, FTP-300 can be used in multiple applications such as powering wireless access points, surveillance cameras, wireless bridges and repeaters, cable modems, and remote lighting systems.
Common applications
Ideal for Wi-Fi hotspots, surveillance cameras, microwave CPE's, cellular gateways and more.
Specifications
Network
- Ethernet ports
2 x 100 Mbps Ethernet, connected back-to-back
Power
- Input power
Voltage: 27 VDC (max)
Current: 6.25 A (max)
- Power sources
Solar panels
AC / DC adapter (external accessory)
- Output power
Total maximum output power (PoE + AUX): 30 Watt
2 x 0/24/48 VDC selectable Passive PoE
48 VDC - Max Power 30W as PSE
24 VDC - Max Power 30W as PSE (15W/port)
1 x AUX + 24 VDC - Max Power 30 W
- Output terminals
2 x RJ45 data ports
1 x RJ45 port for IoT (only)
1 x DC cable terminal
- Input terminals
2 x MC4 connectors (male / female)
- Solar panel specifications
36 cell panels
Minimum Vmp: 18 V
Maximum Voc: 27 V
General
- Model number
FTP-830-00053
- Warranty
3-year hardware warranty
Battery
- Type
Lithium-ion 18650 cells
3.6V, 3,400 mAh is recommended
- Capacity
150Wh / 300Wh, dependent on configuration
- Voltage
Battery voltage: 11 V nominal
Physical

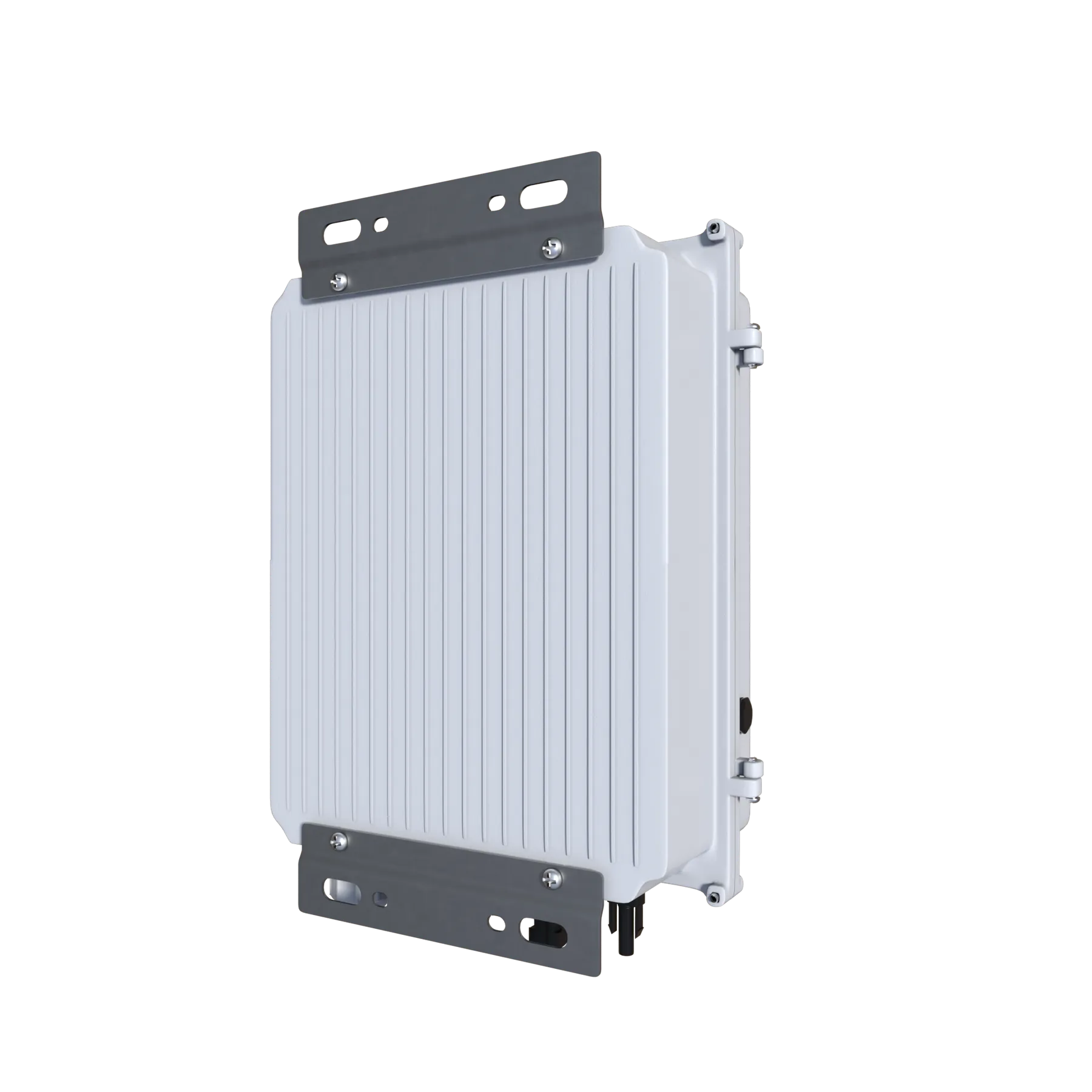

- Mounting
Tower, pole, wall
- Dimensions
Height: 27 cm / 10.6 in
Width: 21.4 cm / 8.4 in
Depth: 9 cm / 3.5 in
- Operating temperature
Charging: +0°C to +45°C / +32°F to +113°F
Discharging: -20°C to +60°C / -4°F to +140°F
- Weight
FTP-300 excluding batteries: 2.20 kg / 4.85 lbs
FTP-300 with 150 Wh (18 cell) battery configuration: 3.05 kg / 6.72 lbs
FTP-300 with 300 Wh (36 cell) battery configuration: 3.90 kg / 8.60 lbs
- Box IP-Rating
IP65
- Material (Box)
Die-cast aluminum, stainless steel
Related accessories
We offer a range of accessories that allows you to install and operate with any supported network equipment in any location.
Part# FTP-740-00018
Li-Ion 18650 batteries
Lithium-ion 18650 3.6V, 3,400 mAh battery cell. 18 batteries required for 150 Wh configuration. 36 batteries required for 300 Wh configuration.
Contact sales arrow_forwardPart# FTP-840-00014
Fuse Pack
Bag of extra fuses for FTP-300.
